PA33CL80 perf

Back to the list of technical parameters

The technical information in this edition was accurate at the time of the printing. We reserve the right to make changes due to the progressiv development of our products. The latest information can be adtained upon request.

 Wall panel ISOLAMIN PA33CL80 perforated
 Thickness  80 mm
 Weight  24,2 kg/m2
 Modular width  565,1180 mm
 Fire class  incombustible

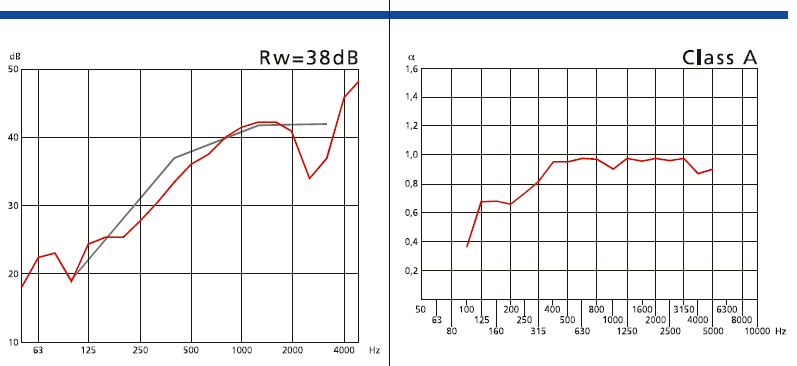

 Sound reduction  38 dB Rw
 Sound absorption  A
 Coefficient of thermal conductance  0,54 w/m2°C

 Tolerances
 Length  ± 5mm
 Weight  ± 1mm
 Thickness  + 0/-1mm

 Surface material
 Material  hot dipped galvanised steel sheet (one side perforated)
 Surface  galv, painted
 Thickness  0,7 mm

 Core material
 Material  mineral wool
 Density  170kg/m3 ± 10 %
